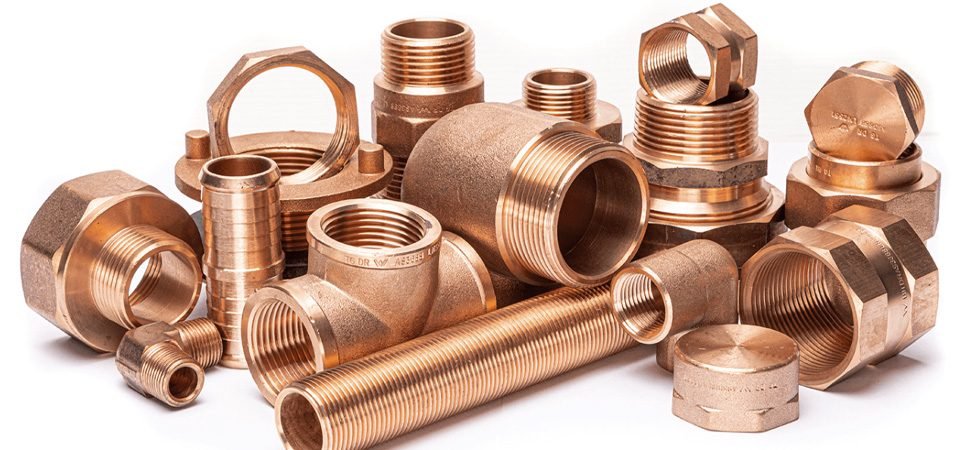

Copper Forged Fittings
Copper C12200 Forged Tee, Copper C12200 Coupling, Copper Alloy C12200 Bushing, Copper Alloy C12200 Half Coupling, Copper Alloy C12200 Threaded Union, Copper C12200 High Pressure Plug, Copper C12200 45 / 90 / 180 DEG. Forged Elbow, Copper C12200 Forged Pipe Cap, Copper Alloy C12200 Forged Pipe Fittings, Copper C12200 Forged Threaded Cross, Copper C12200 Socket weld End Cap, Copper Alloy C12200 High Pressure Forged Fittings Supplier in India.
Overview
Dhodi Metal Industries offering and supplying high-quality Copper Forged Pipe Fittings in different shapes, dimensions, specifications.
Copper C12200 Forged Fittings are components made from high-purity deoxidized copper, widely used in various industries due to their excellent mechanical, thermal, and corrosion-resistant properties. Copper C12200 Forged 45Deg / 90 Deg Elbow, also known as phosphorus-deoxidized copper, has a copper content of at least 99.9% with small amounts of phosphorus (0.015–0.04%) to improve weldability and reduce susceptibility to hydrogen embrittlement. Copper Alloy C12200 Forged Equal & unequal Tee has features such as High thermal and electrical conductivity, Excellent resistance to atmospheric and aqueous corrosion, Good ductility and malleability, Enhanced weldability and brazeability. Due to its superior corrosion resistance qualities, Copper C12200 Forged Cross is often used in applications where exposure to harsh chemicals or corrosive environments is expected.
Specification Of Copper Forged Fittings
| Specifications | ASTM ASTM B75, B88 / ASME SB75, SB88 |
| Grade | UNS NO C12200 |
| Standards | ASME/ANSI B16.9, ASME/ANSI B16.15,ASME B16.28,ASME B16.28, MSS-SP-43 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)″ |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Seamless / Welded / Fabricated |
| Process of Manufacturing | Push, Press, Cast, Forge. |
| Wall Thickness | SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / DN6~DN100 |
| Forged Fittings Type | 90° Elbow, 45° Elbow, Tee, Cross, Full Coupling, Half Coupling, Pipe Cap, Union, Reducer Insert, Boss, Branch Outlet, 90° Elbow Outlet, 45° Lateral Tee, Lateral Outlet, Branch Outlet Butt Weld, 90° Elbow Outlet Butt Weld, Lateral Outlet Butt Weld, Nipple Branch Outlet Butt Weld |
Copper Forged Fittings Types
-

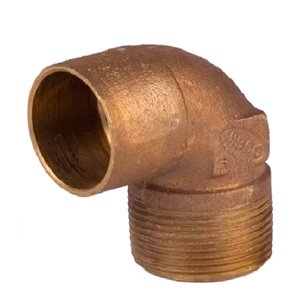

- Copper Forged Elbow
-

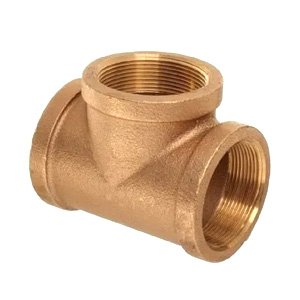

- Copper Forged Tee
-

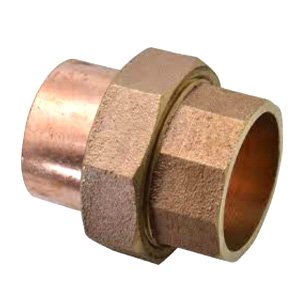

- Copper Forged Union
-

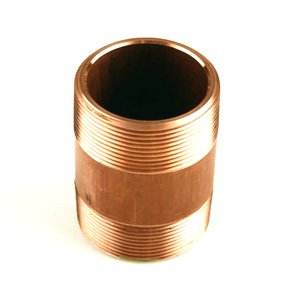

- Copper Forged Nipples
-

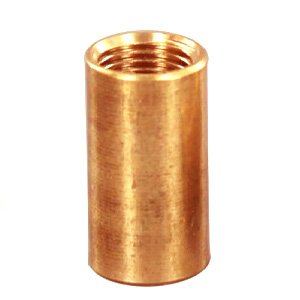

- Copper Forged Coupling
-

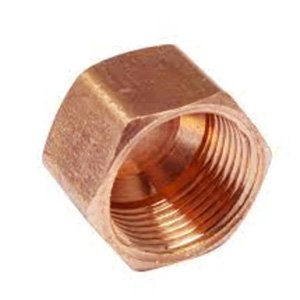

- Copper Forged Pipe Cap
-
- Copper Forged Boss
-

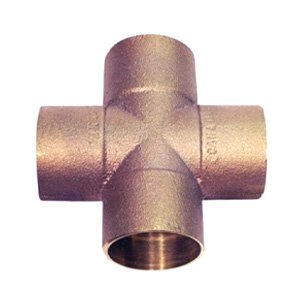

- Copper Forged Cross
Copper C12200 Forged Fittings Equivalent
| Material | UNS |
| Copper Alloy | C12200 |
Copper C12200 Forged Fittings Chemical Properties
| Copper NO. | Chemical Composition | |
| CU% | P% | |
| C12200 | >99.9 | 0.015 to 0.040 |
Copper C12200 Forged Fittings Mechanical Properties
| Copper NO. | Mechanical Properties | |||
| Temper | Tensile strength (Mpa) | Elongation (%) | Average Grain Size (mm) | |
| C12200 | >60 | >205 | >40 | >0.040 |
| >50 | >245 | |||
Copper Forged Fittings Manufacturing Standards
| MSS SP-79 | Wrought & Fabricated Forged Fitting for Low Pressure, Corrosion Resistant Applications |
| BS3799 – | Specification for Forged Fitting for the petroleum industry |
| ASME Standard | ASME/ANSI B16.11, MSS-SP-79 |
| DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard | EN10253-2, EN10253-1 |
| ASME B16.11 | Threaded Ends |
Copper Alloy C12200 Socket Weld Fittings Dimensional Data
| Class 3000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | 7/8 | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 3 | 3 3/8 | 4 3/16 | |
| B | 29/32 | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/16 | 4 5/16 | 5 3/4 | |
| C | 0.420 | 0.555 | 0.690 | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | 2.906 | 3.535 | 4.545 | |
| D | 3/8 | 3/8 | 3/8 | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 5/8 | 5/8 | 5/8 | 3/4 | |
| E | 7/16 | 7/16 | 17/32 | 5/8 | 3/4 | 7/8 | 1 1/16 | 1 1/4 | 1 1/2 | 1 5/8 | 2 1/4 | 2 5/8 | |
| 1/2″ | 20.5 | 22.8 | 76 | 51 | 3 | 35 | |||||||
| 3/4″ | 25.9 | 28.1 | 76 | 51 | 3 | 43 | |||||||
| 1″ | 32.6 | 35.0 | 102 | 51 | 3 | 51 | |||||||
| 1 1/4″ | 41.4 | 43.6 | 102 | 51 | 5 | 64 | |||||||
| 1 1/2″ | 47.5 | 49.9 | 102 | 51 | 6 | 74 | |||||||
| 2″ | 59.5 | 62.4 | 152 | 64 | 8 | 92 | |||||||
| 2 1/2″ | 72.2 | 75.3 | 152 | 64 | 8 | 105 | |||||||
| 3″ | 88.1 | 91.3 | 152 | 64 | 10 | 127 | |||||||
| 3 1/2″ | 100.8 | 104.0 | 152 | 76 | 10 | 140 | |||||||
| 4″ | 113.5 | 116.7 | 152 | 76 | 11 | 157 | |||||||
| 5″ | 140.5 | 144.3 | 203 | 76 | 11 | 186 | |||||||
| 6″ | 167.5 | 171.3 | 203 | 89 | 13 | 216 | |||||||
| 8″ | 218.3 | 222.1 | 203 | 102 | 13 | 270 | |||||||
| 10″ | 272.3 | 277.2 | 254 | 127 | 13 | 324 | |||||||
| 12″ | 323.1 | 328.0 | 254 | 152 | 13 | 381 | |||||||
| 14″ | 354.8 | 359.9 | 305 | 152 | 13 | 413 | |||||||
| 16″ | 405.6 | 411.0 | 305 | 152 | 13 | 470 | |||||||
| 18″ | 456.0 | 462.0 | 305 | 152 | 13 | 533 | |||||||
| 20″ | 507.0 | 514.0 | 305 | 152 | 13 | 584 | |||||||
| 22″ | 558.0 | 565.0 | 305 | 152 | 13 | 641 | |||||||
| 24″ | 609.0 | 616.0 | 305 | 152 | 13 | 692 | |||||||
| Class 6000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | – | – | – | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 1/2 | |
| B | – | – | – | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 6 | |
| C | – | – | – | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | 2.906 | 3.535 | 4.545 | |
| D | – | – | – | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 5/8 | 5/8 | 5/8 | 3/4 | |
| E | – | – | – | 3/4 | 7/8 | 1 1/16 | 1 1/4 | 1 1/2 | 1 5/8 | 2 1/4 | 2 1/2 | 2 3/4 | |
| Class 9000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | – | – | – | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 | – | – | – | |
| B | – | – | – | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 3 11/16 | – | – | – | |
| C | – | – | – | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | – | – | – | |
| D | – | – | – | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 5/8 | – | – | – | |
| E | – | – | – | 1 | 1 1/8 | 1 1/4 | 1 3/8 | 1 1/2 | 2 1/8 | – | – | – |
Copper Alloy C12200 Threaded Fittings Dimensional Data
| Class 2000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | – | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 3 | 3 3/8 | 4 3/16 | |
| B | – | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/16 | 4 5/16 | 5 3/4 | |
| Class 3000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 1/2 | |
| B | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 6 | |
| Class 6000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 3/16 | 4 1/2 | |
| B | 1 1/6 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 5 3/4 | 6 | |
| 1/2″ | 20.5 | 22.8 | 76 | 51 | 3 | 35 | |||||||
| 3/4″ | 25.9 | 28.1 | 76 | 51 | 3 | 43 | |||||||
| 1″ | 32.6 | 35.0 | 102 | 51 | 3 | 51 | |||||||
| 1 1/4″ | 41.4 | 43.6 | 102 | 51 | 5 | 64 | |||||||
| 1 1/2″ | 47.5 | 49.9 | 102 | 51 | 6 | 74 | |||||||
| 2″ | 59.5 | 62.4 | 152 | 64 | 8 | 92 | |||||||
| 2 1/2″ | 72.2 | 75.3 | 152 | 64 | 8 | 105 | |||||||
| 3″ | 88.1 | 91.3 | 152 | 64 | 10 | 127 | |||||||
| 3 1/2″ | 100.8 | 104.0 | 152 | 76 | 10 | 140 | |||||||
| 4″ | 113.5 | 116.7 | 152 | 76 | 11 | 157 | |||||||
| 5″ | 140.5 | 144.3 | 203 | 76 | 11 | 186 | |||||||
| 6″ | 167.5 | 171.3 | 203 | 89 | 13 | 216 | |||||||
| 8″ | 218.3 | 222.1 | 203 | 102 | 13 | 270 | |||||||
| 10″ | 272.3 | 277.2 | 254 | 127 | 13 | 324 | |||||||
| 12″ | 323.1 | 328.0 | 254 | 152 | 13 | 381 | |||||||
| 14″ | 354.8 | 359.9 | 305 | 152 | 13 | 413 | |||||||
| 16″ | 405.6 | 411.0 | 305 | 152 | 13 | 470 | |||||||
| 18″ | 456.0 | 462.0 | 305 | 152 | 13 | 533 | |||||||
| 20″ | 507.0 | 514.0 | 305 | 152 | 13 | 584 | |||||||
| 22″ | 558.0 | 565.0 | 305 | 152 | 13 | 641 | |||||||
| 24″ | 609.0 | 616.0 | 305 | 152 | 13 | 692 | |||||||
| Class 6000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | – | – | – | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 1/2 | |
| B | – | – | – | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 6 | |
| C | – | – | – | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | 2.906 | 3.535 | 4.545 | |
| D | – | – | – | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 5/8 | 5/8 | 5/8 | 3/4 | |
| E | – | – | – | 3/4 | 7/8 | 1 1/16 | 1 1/4 | 1 1/2 | 1 5/8 | 2 1/4 | 2 1/2 | 2 3/4 | |
| Class 9000 | 　 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
| A | – | – | – | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 | – | – | – | |
| B | – | – | – | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 3 11/16 | – | – | – | |
| C | – | – | – | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | – | – | – | |
| D | – | – | – | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 5/8 | – | – | – | |
| E | – | – | – | 1 | 1 1/8 | 1 1/4 | 1 3/8 | 1 1/2 | 2 1/8 | – | – | – |
